基于新型熱交聯主體材料VB-CzTAZ的OLED器件的研究 齊岳生物提供定制合成

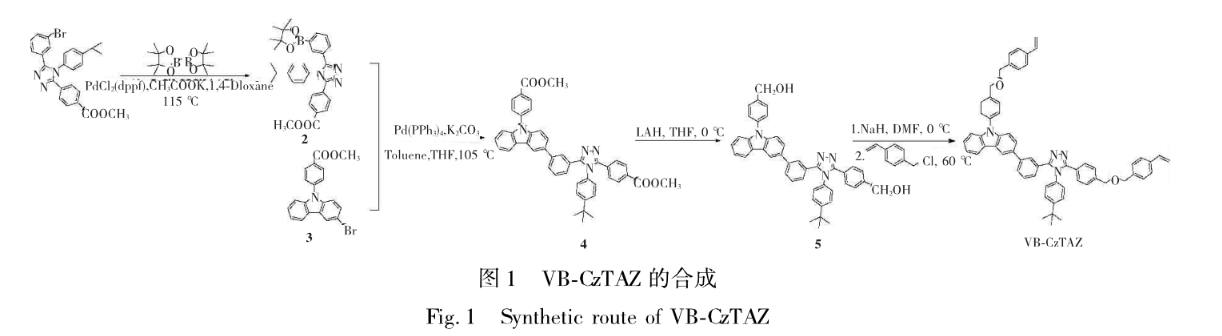

為了得到溶液法制備的高性能的OLED器件, 基于咔唑和1,2,4-三氮唑基團及可熱交聯的苯乙烯基團, 設計并合成了可熱交聯的主體材料VB-CzTAZ。

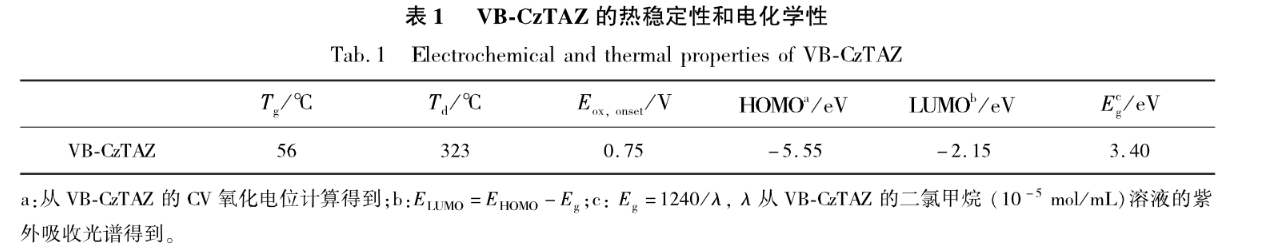

測試結果表明, VB-CzTAZ具有很好的熱穩定性(Td: 323 ℃), 把該材料溶于氯苯旋涂成膜, 該膜在手套箱中190 ℃下發生熱交聯。

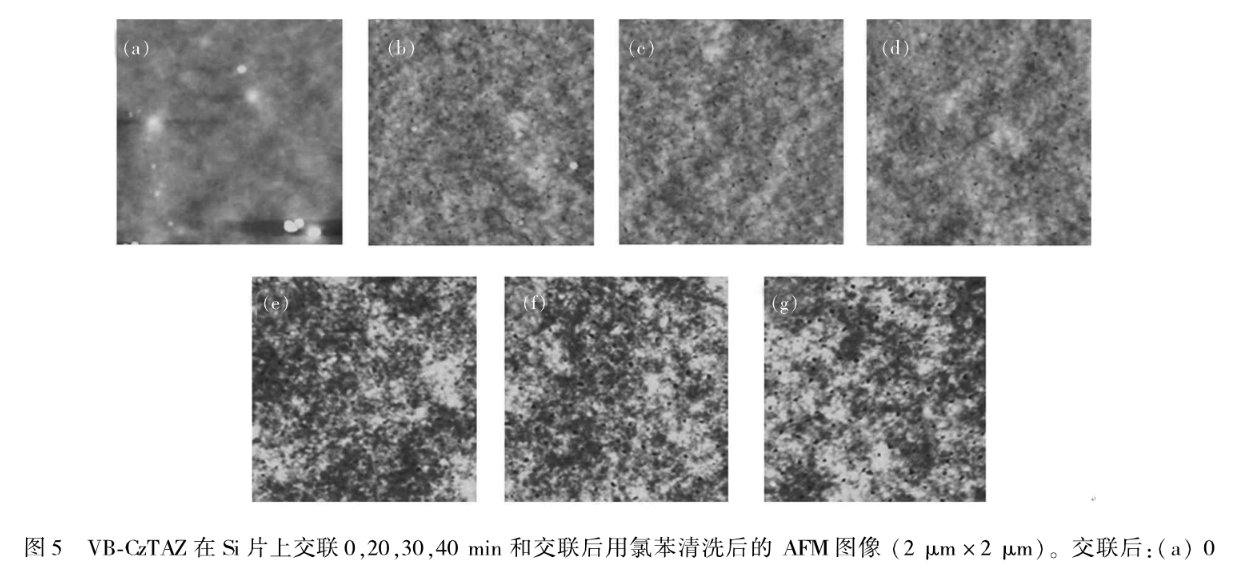

不同溶劑的薄膜清洗實驗表明, 熱交聯后的VB-CzTAZ具有優秀的抗溶劑性。

基于VB-CzTAZ溶液法制備的綠光磷光器件, 啟動電壓為5.1 V, 亮度為2 404 cd/m2, 電流效率為4.3 cd/A, 表明該交聯材料可以用于溶液法制備多層OLED器件。

Abstract：

In order to realize the high efficiency OLEDs by solution process, a cross-linkable host material, VB-CzTAZ containing carbazole and 1,2,4-triazole units was designed and synthesized. It is found that VB-CzTAZ with styryl groups can be thermally cross-linked by curing at 190 ℃ without any polymerization initiator. Besides the excellent thermal stability (Td:323 ℃) and good surface morphology, the thermally cross-linked film of VB-CzTAZ also shows excellent solvent resistances as rinsing with different solvent. For the phosphorescent OLEDs (PhOLED) incorporating VB-CzTAZ as host, the turn-on voltage is 5.1 V, the maximum luminance is 2 404 cd/m2, and the maximum current efficiency is 4.3 cd/A, respectively. It indicates that the cross-linkable host material has potential to be used for the solution-processed multilayer PhOLED.
